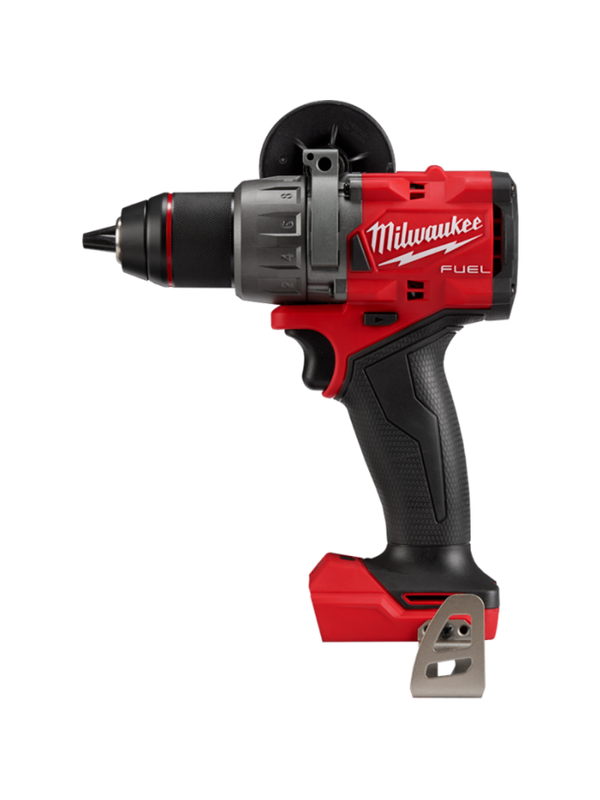

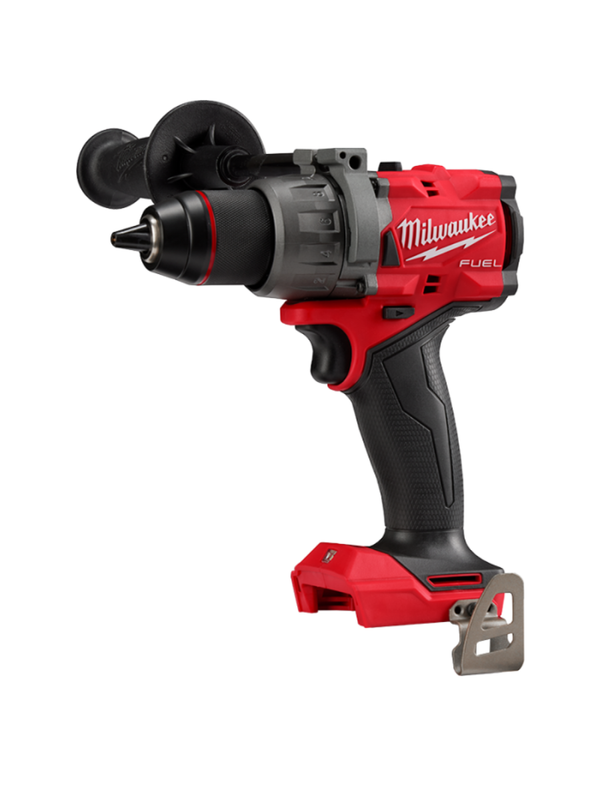

Milwaukee M18 FUEL Hammer Drill Driver M18 FPD3-0X0 JP (Tool Only)
Product Description
The Milwaukee M18 FUEL™ Hammer Drill Driver (M18 FPD3-0X0 JP) is a high-performance cordless drill designed for demanding professional applications. Equipped with the POWERSTATE™ brushless motor, it delivers exceptional power, durability, and efficiency for a wide range of drilling and fastening tasks.
The newly designed motor provides up to 30% more power compared to the previous generation, delivering an impressive maximum torque of 158 Nm. This allows the drill to handle heavy-duty jobs such as drilling into wood, steel, masonry, and concrete.
The tool features an advanced heat-dissipation electronic system, enabling continuous operation even under heavy loads. Its compact head length of only 175 mm improves maneuverability and makes it ideal for working in tight or confined spaces.
For added safety and control, the drill includes Auto-Stop™ control mode, which helps reduce excessive rotation in case of a sudden bind-up. A built-in LED light improves visibility in dark work areas, while the new mechanical clutch design allows precise torque control for fastening applications.
Powered by the Milwaukee M18™ REDLITHIUM™-ION battery platform, this hammer drill offers reliable cordless performance and compatibility with the entire M18 system.
Key Features
- POWERSTATE™ brushless motor for high efficiency and durability
- Up to 30% more power than previous generation models
- Maximum torque: 158 Nm for heavy-duty applications
- Compact head length (175 mm) for working in tight spaces
- Auto-Stop™ control mode for improved safety
- Advanced heat dissipation system for extended heavy-duty use
- Integrated LED light for better visibility in dark areas
- New mechanical clutch system for precise torque control
- Compatible with M18™ REDLITHIUM™ battery platform
Included Items
- M18 FPD3-0X0 JP Hammer Drill Driver (Tool Only) ×1
- Tool Box ×1
Battery and charger sold separately.
Specifications
| Item | Details |
|---|---|
| Model | M18 FPD3-0X0 JP |
| Voltage | 18V |
| Battery Platform | M18™ REDLITHIUM™-ION |
| Motor | POWERSTATE™ Brushless Motor |
| Maximum Torque | 158 Nm |
| Speed Settings | 2 Modes |
| No Load Speed | 0–500 / 0–2100 rpm |
| Impact Rate | 0–7,800 bpm / 0–33,000 bpm |
| Chuck Type | Metal Chuck |
| Chuck Capacity | Up to 13 mm |
| Max Drilling – Concrete/Masonry | 15.88 mm |
| Max Drilling – Steel | 13 mm |
| Max Drilling – Wood | 89 mm (Hole Saw) |
| Length | 175 mm |
| LED Light | Yes |
| Fuel Gauge | Yes |
| Weight (with 2.0Ah battery) | Approx. 1.9 kg |
